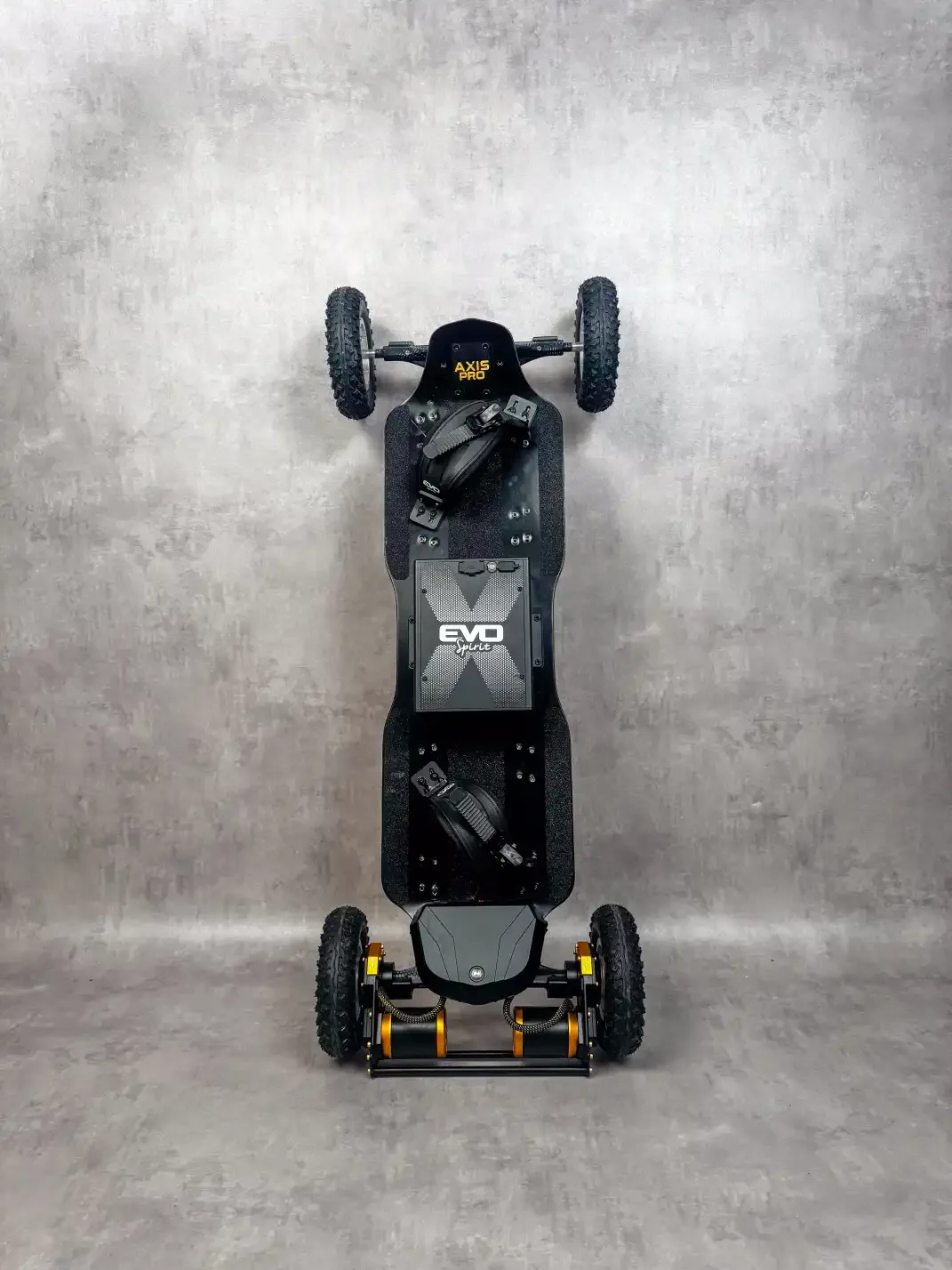

AXIS PRO
The high-performance electric mountainboard
16S Architecture / 10,000 W / Gear Drive Gold
Battery on top
The AXIS Pro features a Top Box architecture, with the battery mounted on top of the deck. This frees up space underneath the board for better all-terrain maneuverability.
- Battery accessible in 30 seconds
- Lowered center of gravity
- 16S high-voltage architecture
- 90 A controller, the most powerful in the range
Strong and comfortable
The deck combines 3 thin maple plies, 2 thick bamboo plies, and 2 fiberglass layers, striking a perfect balance of stiffness and absorption. The flex provides comfort on rough terrain.
- 3 thin maple + 2 thick bamboo + 2 fiberglass
- Flex calibrated for all-terrain
- High-grip grip tape
- Bindings compatible
Spring Trucks
The spring trucks are equipped with calibrated bushings for a balance between precision and comfort. This setting is made for carving on the street as well as for stability in all-terrain.
- Calibrated bushings for precise street carving
- Stability and control for all-terrain riding
- Hydro dipping Evo-Spirit logo
- Reinforced all-terrain aluminum
16S Architecture
The AXIS Pro comes with two high-voltage 16S (57.6 V) battery configurations, so you can pick the one that best suits your riding style. Choose the lightweight, agile Freestyle version (16S2P EVE 40P) for up to 20 km. Or, for maximum range, choose the Long Range version (16S4P Samsung 50S). This delivers up to 50 km. The controller sends up to 160 A peak.
Choose your configuration
Freestyle or Long Range: two batteries, two uses, same AXIS Pro chassis.
Light and agile
The EVE 40P 16S2P battery is housed in the Top Box. It weighs 16.9 kg. This setup is ideal for freeride and jumps. It is also ideal for sporty all-terrain riding. The 16S architecture delivers 10,000 W for a maximum speed of 55 km/h (electronically limited).
- Weight: 16.9 kg
- High-discharge EVE 40P cells
- Top box
- Price: €2,390
Maximum range
The Samsung 50S 16S4P battery is in the top box. It weighs 19.8 kg. This gives you more range for long sessions or demanding trails. You get the same motor performance.
Range is calculated for a 70 kg rider on a bike path (electric skateboard measurement standard). It varies depending on rider weight, selected power mode, surface type, and especially the frequency of stops: starting from a standstill consumes the most energy.
- Weight: 19.8 kg
- Premium Samsung 50S cells
- Top box
- Price: €2,890
10,000 W of power
Two 6384 140KV brushless motors are controlled by a 90A ESC (compared to 70A on the NEXUS) in a 16S high-voltage architecture. This setup provides regenerative braking and progressive power.
Robust and reliable
The metal gear Gear Drive drivetrain ensures maximum durability. You won't need to tension any drive belt, and there's no regular replacement required. The AXIS Pro's Gear Drive is the same as the one found on the NEXUS Pro.
- High-strength metal gears
- No drive belt to tension or replace
- Minimal maintenance
- Maximum durability
- Drivetrain ratio: 4.3
Total control
The bindingsThey come with the AXIS Pro. This ensures a perfect fit from your very first ride. They are adjustable and removable, adapting to your riding style, whether you're into freeride, fast descents, or jumps. Gold anodized mounting hardware is included.
- Included with the board
- Adjustable for all shoe sizes
- Removable in seconds
- Total control on descents and jumps
A premium look
The Gold anodized finishes set the AXIS Pro apart. This includes the Gear Drive, trucks, wheel mounting hardware, and CNC aluminum remote control. It's an unprecedented level of finish for the flagship of the range.
- Gold anodized Gear Drive transmission
- Gold wheel and truck mounting hardware
- Remote control with Gold CNC aluminum casing
- Hydro-dipped Evo-Spirit Gold logo
6 compatible wheels
Change wheels in minutes to adapt your AXIS Pro to any terrain.

8-inch pneumatic
Extreme off-road. These 200 mm diameter wheels conquer all obstacles. This makes them the natural choice for the AXIS Pro.

7-inch pneumatic
Versatile. This option gives you an excellent compromise of grip and speed, with good maneuverability for paths and trails.

6-inch inflatable
Compact and maneuverable, these are ideal for mixed terrains and riders seeking more agility.
The AXIS Pro is compatible with six types of wheels: 6, 7, and 8-inch inflatable wheels for all-terrain (8 inches recommended), 140mm puncture-proof Airless for zero maintenance, 105mm Boosted, and 115mm Soft Rubber for urban riding.

AXIS Pro technical specifications
Need advice?
Evo-Spirit since 2008
2c avenue du Gulf Stream, 44380 Pornichet (Loire-Atlantique)
Phone: 02 40 22 16 22- Monday to Friday, 9 am-1 pm / 2 pm-5 pm
Showroom and test by appointment
Frequently asked questions about the AXIS Pro
The AXIS Pro stands as the flagship of Evo-Spirit's electric mountainboard range. It features a high-voltage 16S architecture (57.6 V), a 90 A controller, 6384 140KV motors delivering 10,000 W, a Gold Gear Drive drivetrain, and includes bindings. It's available in two versions: Freestyle (EVE 40P, 16.9 kg, €2,390) and Long Range (Samsung 50S, 19.8 kg, €2,890). Designed and tested in Pornichet, it comes with a 2-year warranty. For after-sales support, call 02 40 22 16 22.
What's the difference between the AXIS Pro and the NEXUS Pro?
The AXIS Pro features a 16S high-voltage architecture (57.6 V) with a 90 A controller and a Top Box design. In contrast, the NEXUS Pro uses a 12S architecture (43.2 V) with a 70 A controller. Both models come with a Gold Gear Drive. The AXIS Pro delivers 10,000 W compared to the NEXUS Pro's 6,400 W. Its battery is also mounted on top of the deck (Top Box). The AXIS Pro offers two battery configurations, while the NEXUS Pro has only one.
Which version should I choose: AXIS Pro Freestyle or Long Range?
Choose the Freestyle if you prioritize weight (16.9 kg), maneuverability, and freestyle riding. Opt for the Long Range if you want maximum range. The Freestyle uses EVE 40P cells in a 16S2P configuration, which are ideal for intense discharge. The Long Range utilizes Samsung 50S cells in a 16S4P configuration (19.8 kg), the same as those in the NEXUS Pro, for extended sessions. Both versions offer identical motor performance.
Is the AXIS Pro suitable for beginners?
The AXIS Pro is designed for experienced riders who demand maximum performance. Its 10,000 W and 16S high-voltage architecture make it the most powerful board in our range. It offers 4 modes (Eco, Normal, Sport, Sport+), and the Eco mode remains accessible for progression. Its raw power and weight (16.9 or 19.8 kg) mean it's best suited for those who have already mastered electric mountainboarding.
Are the bindings included?
Yes, bindings are included with the AXIS Pro.These bindings are adjustable for all foot sizes and can be removed in seconds. You get total control for freeride, descents, and jumps. The mounting hardware is anodized Gold, matching the premium finishes found throughout the AXIS Pro.
Why is the AXIS Pro more powerful than the NEXUS?
The AXIS Pro surpasses other models thanks to its 16S high-voltage architecture (57.6 V vs 43.2 V) and its 90 A controller (vs 70 A). Using the same 6384 140KV motors, the higher voltage and more powerful controller allow it to extract 10,000 W instead of 6,400 W, which is a 56% increase in power. This gain translates into sharper acceleration and improved climbing ability.
What is the warranty?
The AXIS Pro comes with a 2-year manufacturer's warranty covering the battery, deck, motors, Gear Drive drivetrain, and labor. After the warranty period, individual spare parts remain available for at least 5 years after purchase, and up to 10 years depending on the part. Our Pornichet workshop continues to repair the AXIS Pro. We offer integrated after-sales support with our workshop in Pornichet.
Where is Evo-Spirit after-sales support located?
Our after-sales support workshop is located at 2C avenue du Gulf Stream, 44380 Pornichet (Loire-Atlantique). Every part of the AXIS Pro is individually repairable: the motor, battery, ESC controller, Gear Drive gears, Top Box, trucks, deck, and wheels. The average turnaround time is 3 to 5 business days. Contact us at 02 40 22 16 22 or info@evo-spirit.com.
Can the wheels be changed easily?
Yes, the AXIS Pro is compatible with six types of wheels, and you can swap them out in minutes. The 8-inch (200 mm) pneumatic wheels are the go-to choice for handling the AXIS Pro's power on all-terrain rides. For more maneuverability, opt for the 7-inch and 6-inch wheels. We also offer 140 mm Airless wheels for zero maintenance, 105 mm Boosted wheels, and 115 mm Soft Rubber wheels for urban cruising. All are available as spare parts.
Do you deliver throughout Europe?
Yes, Evo-Spirit delivers the AXIS Pro throughout Europe. If the board is in stock, we ship it within 48 hours from our Pornichet warehouse. For pre-orders, the delivery date on the product page is the one to go by. We calculate delivery costs at checkout. You can pay in 2, 3, or 4 installments via Alma. VAT is included for all European Union countries (OSS).
Does the AXIS Pro have a Speed-Limited Version?
No, the AXIS Pro is not available in a Speed-Limited Version. Its 10,000 W power and 16S high-voltage architecture are not compatible with the 25 km/h speed limiting regulated in France. For riding on public roads in France, we recommend the Xplorer V2 or the NEXUS in their Speed-Limited Versions.
